AT-30 MECHANICAL TURRET PUNCHING MACHINE

Main transmission are reliable mechanical. AT-30 series punch press has the characteristics of high-efficiency, energy-

saving, low-noise, high-accuracy, and can realize many processes like cutting, forming and so on.

Punching force is 300KN, The max. sheet size that can be processed is 5000x1250mm (with one re-positioning), four-

axis machining (X, Y, T, C), CNCKAD in Windows system, CAD 2D graphics programming, Batch drag-and-drop processing of

files in DXF, DWG or IGES format, direct nesting, Adopting O-type steel plate welding frame; linear guide and ball screw from

Taiwan TBI or Taiwan HIWIN.

Frame

u O-type integral welding frame special for servo punch press.

Holistic welding structure, stress relief from tempering treatment. The strong rigidity and high tonnage ensures the stable

accuracy for a long time, extends the service life of the machine and tooling, and improves the positioning precision, reliability

and durability of the punch press.

• System

• Network communication, software can infinitely speed variation
• Real-time display of machining graphics, intuitive and humanized interface.
• One-click to return to the reference point, one-click loading position setting.
• According to the plate thickness automatic adjust the punch preloading height.
• Can set high precision, extreme speed, normal and so on many kinds of processing mode.
• Automatic detection of clamp position.
• Break point processing function, analog processing function.
• One-click operation, cycle start function.
• All stations have their own independent protection area, and own independent processing parameters.

Clamps

• The pneumatic floatable clamps reduce the deformation of the plate.
• The self-protection function makes no dead area for punching on sheet.
• The clamp automatically floats when clamping the plate, convenient for the plate clamp.
• Automatic unloading when the clamp returns.

Turret and Tooling

• Precision wear-resistant guide holder inlaid on turret, large machining center in pairs processed.

• International standard Japan AMADA long guide tool, Reasonable stations distribution, tooling in common use.

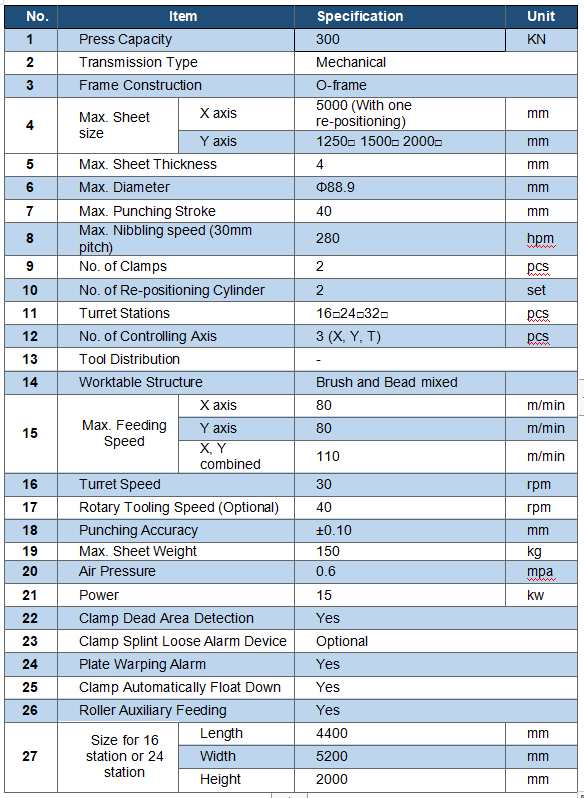

Specifications:

2.Jointly established a research base with many domestic famous universities

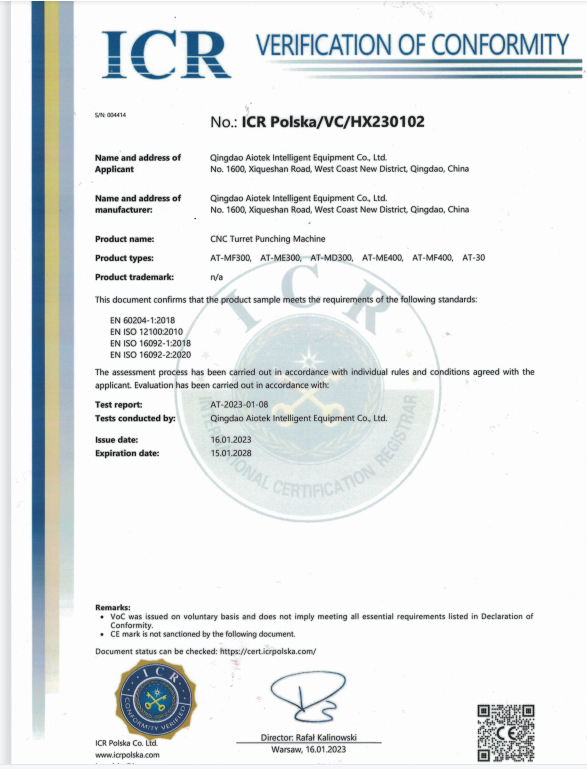

3. CE Certificate

Package:

Exhibition

Company Profile

Qingdao Aiotek Intelligent Equipment Co., Ltd. is one well-known manufacturer which are specialized in CNC punching machine in North China from 2006. We are one-stop supplier for sheet metal machines. In March 2017, our company moved into a high-level industrial park. The new plant is focusing on the R&D and manufacturing of high-end CNC machines for sheet metal industry, including CNC turret punching machine, all-electric servo turret punching machine, press brake, CNC all-electric servo flexible bending center and laser cutting machine. Powerful R&D center ensures that our machines are equipped with the most cutting-edge technologies. With a professional team and rich experience, we have over 900 factories all around China as our partners for a long-term cooperation, and over 2000 sets of machines have been installed and come into use with stability. We also have timely after-sales service without time difference to ensure the stability of enterprise production without unnecessary costly downtime. Our machines are widely used in electric cabinets, air conditioning, elevators, kitchenware, aluminum veneer, solar water heaters, auto and bicycle accessories, audio equipment, household appliances and other sheet metal industries. They have been exported to Southeast Asia, South Asia, Central Asia, Africa, Middle East, Russia, and other countries and regions. With us, you'll make your solution more productive! we care what you care!
