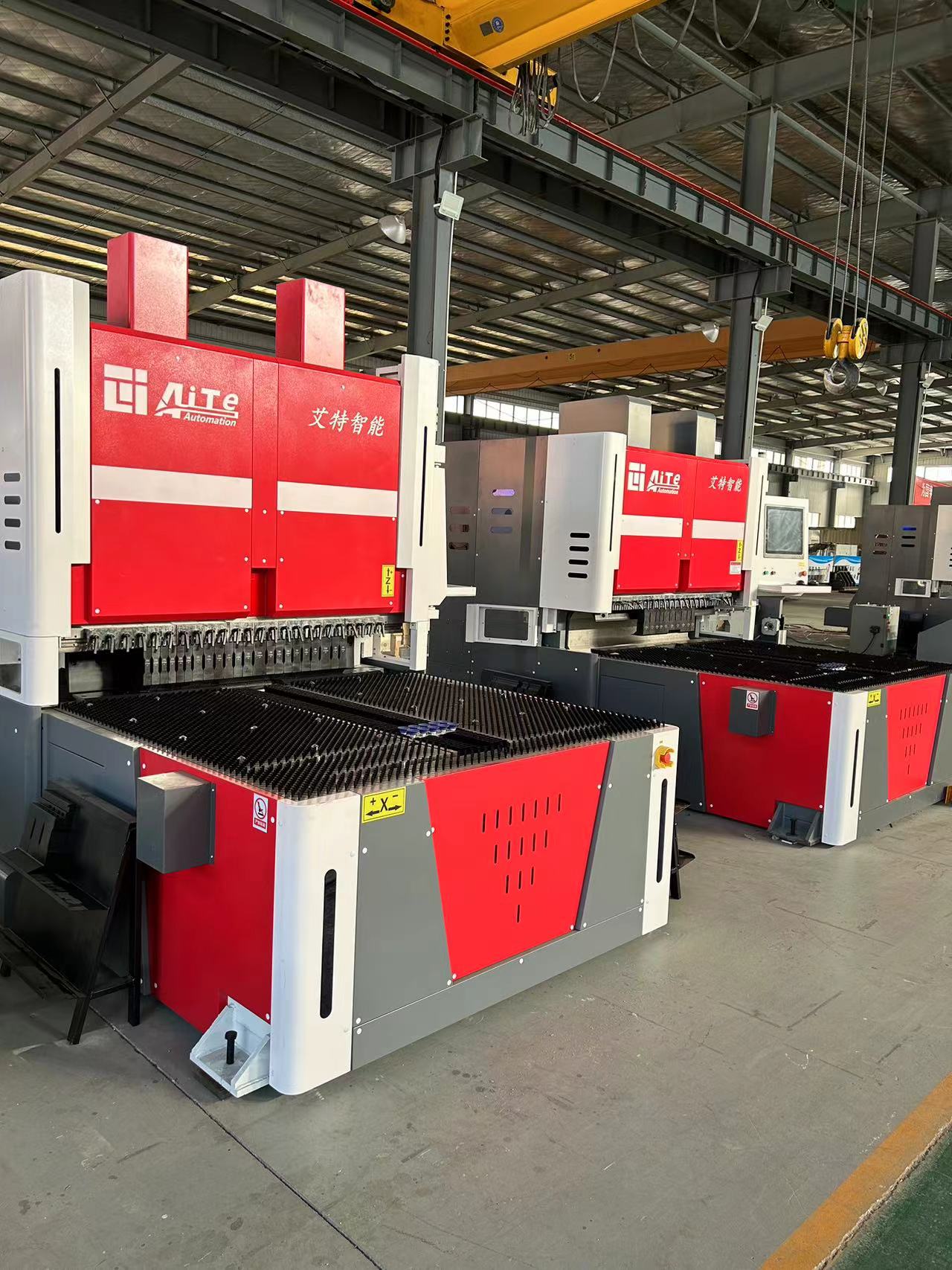

AT-1400 flexible bending center with sucker
2023 New Sheet Metal Bending Machine Cnc Panel Bender For Kitchen
Cabinet
After 3 years of technical research, the R&D center of AIOTEK
has developed servo flexible bending center
with cutting-edge technologies. The speed is only 0.2 second per
bending motion. The equipment can
automatically bend up and down according to the bending programming
to achieve an arc, The combination of
flattening bending and various angles saves a lot of labor and tool
costs for processing. The max. size of the
panel processed is 1400mmx1000mm, and the system controls up to 9
axes -X, Y, C, V1, V2, Z1, Z2, W1, W2.
Specifications:
Bending Thickness:
| S Series AT-1000/1400/ S1400/S1600/ S2000/S2500/ S3000/S3200 | HS Series HS1400/HS1600/HS2000 HS2500/HS3000/HS3200 |
Stainless steel(SS)
| 0.3-1.0mm | 0.8-1.5mm |
Carbon Steel(MS)
| 0.3-1.2mm | 0.8-2.0mm |
Aluminum(AL)
| 0.3-2.0mm | 0.8-3.5mm |
Bending center machine has below outstanding merits :
1. Simple bending program and easy to understand, operate,flexibly
and easily complete various complex bending workpieces.
2. 2. Fast and convenient ,high degree of auotmation with
manipulator,
3. high precision of processing.
4. 3. Obviously Save a lot of labor and tool costs in processing
than the traditional press brake .
5. 4. SERVO systems for energy saving and high efficiency .
5. Bending length upto 2500mm ,bending height upto 190mm
Main Functions:
1.four-side bending;
2.one-side bending;
3.continuously bending up and bending down without replacing
bending blades .
4.Flexiblely bending arc-side curbs from 0-90 degree;
5.Automatically forming the squared rectangle side curbs .
6.Automatically tightly folding edges of panel;
7.Automatically forming rectangle boxes with max.100mm height of
side edges.
8.Automatically bending the various complicated combinations of
various angles of edges for panel.
Application field:
1). various boxes,
2). canopies,
3).file cabinets
4).kitchen cabinets ,
5).chassis cabinets,
6).furniture industry,
7).decorating industry;
8).ventilation facilities,
9).referigation facilities,
10).elevator industry,
11).car industry,
12). door industry.
1.Patent design of flexible pressure arm
The first flexible arm bending center manufacturer in China,We have obtained more than 20 patent certificates
2.Jointly established a research base with many domestic famous
universities
3. CE Certificate and ISO9001
Package:
Exhibition
Company Profile
Qingdao Aiotek Intelligent Equipment Co., Ltd. is one well-known
manufacturer which are specialized in CNC punching machine in North
China from 2006. We are one-stop supplier for sheet metal machines.
In March 2017, our company moved into a high-level industrial park.
The new plant is focusing on the R&D and manufacturing of
high-end CNC machines for sheet metal industry, including CNC
turret punching machine, all-electric servo turret punching
machine, press brake, CNC all-electric servo flexible bending
center and laser cutting machine. Powerful R&D center ensures
that our machines are equipped with the most cutting-edge
technologies. With a professional team and rich experience, we have
over 900 factories all around China as our partners for a long-term
cooperation, and over 2000 sets of machines have been installed and
come into use with stability. We also have timely after-sales
service without time difference to ensure the stability of
enterprise production without unnecessary costly downtime. Our
machines are widely used in electric cabinets, air conditioning,
elevators, kitchenware, aluminum veneer, solar water heaters, auto
and bicycle accessories, audio equipment, household appliances and
other sheet metal industries. They have been exported to Southeast
Asia, South Asia, Central Asia, Africa, Middle East, Russia, and
other countries and regions. With us, you'll make your solution
more productive! we care what you care!
FAQ
1. who are we?
We are based in Shandong, China, start from 2021,sell to Mid
East(40.00%),Eastern Asia(30.00%),South Asia(20.00%),Eastern
Europe(10.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Automatic Panel Bender (Flexible Bending Center ), CNC Turret
Punching Machine,sheet metal press brake
4. why should you buy from us not from other suppliers?
We are one-stop supplier for sheet metal machines.With a
professional team and rich experience,we have over 900 factories
all around China as our partners, our new plant is focused on
international market.With us, you'll make your solution more
productive.
5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW；
Accepted Payment Currency:USD,EUR,CAD,AUD,GBP,CNY;
Accepted Payment Type: T/T,L/C,Cash;
Language Spoken:English,Japanese,Russian,Korean
